Selecting the right chimney size is crucial for the safety, efficiency, and performance of your heating appliance. Whether you’re installing a new wood stove, fireplace, or updating an existing chimney system, understanding proper chimney sizing ensures optimal draft, prevents dangerous creosote buildup, and maximizes heat output.
This comprehensive guide will walk you through everything you need to know about chimney sizing, from metal prefabricated options to traditional masonry flues, helping you make an informed decision for your home.
Chimney Size Basics
When we talk about chimney size, we’re primarily referring to the diameter or cross-sectional area of the flue—the interior passage through which smoke and gases exit your home. The chimney size directly impacts your appliance’s ability to vent properly, affecting everything from draft efficiency to safety compliance.
A properly sized chimney creates the ideal balance between heat retention and adequate airflow. Too small, and you’ll experience poor draft, excessive creosote buildup, and potential backdraft of dangerous gases into your home. Too large, and you may struggle with insufficient draft, especially during colder months when the chimney walls don’t heat up enough to create adequate updraft.
The capacity of a chimney to remove smoke and energy (BTUs) from an appliance is directly related to its cross-sectional area. This is why understanding chimney sizing isn’t just about matching diameters—it’s about ensuring the entire venting system works harmoniously with your specific heating appliance.
Types of Chimneys: Metal vs. Masonry
Before diving into specific sizing charts, it’s essential to understand the two main categories of chimneys available on the market today:
Metal (Prefabricated) Chimneys
Metal chimneys, also known as prefabricated or factory-built chimneys, are engineered systems typically made of stainless steel or other metal alloys. These systems come in Class A varieties with double or triple-wall construction, providing built-in insulation and safety features.
Metal chimneys are popular for their ease of installation, versatility, and compatibility with various heating appliances. They’re commonly used with wood stoves, pellet stoves, and some central heating systems.
Masonry Chimneys
Masonry chimneys are traditional structures built on-site from brick, stone, or concrete blocks with clay tile flue liners. These chimneys are known for their durability, aesthetic appeal, and excellent heat retention properties.
Masonry chimneys are typically found with fireplaces but can also accommodate certain types of wood stoves and central heating systems. Their sizing is determined by the internal dimensions of the flue tiles rather than the external structure.
Metal Chimney Size Chart
Metal chimneys are available in standard diameters; each designed for specific applications and BTU ratings. Here’s a comprehensive chart detailing the common sizes and their recommended uses:

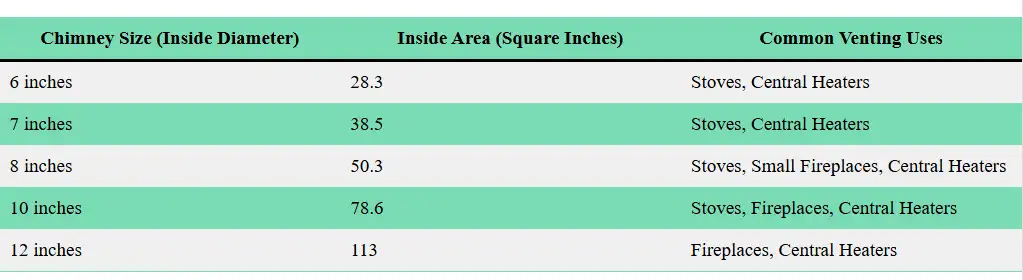

| Chimney Size (Inside Diameter) | Inside Area (Square Inches) | Common Venting Uses |
|---|---|---|
| 6 inches | 28.3 | Stoves, Central Heaters |
| 7 inches | 38.5 | Stoves, Central Heaters |
| 8 inches | 50.3 | Stoves, Small Fireplaces, Central Heaters |
| 10 inches | 78.6 | Stoves, Fireplaces, Central Heaters |
| 12 inches | 113 | Fireplaces, Central Heaters |
When selecting a metal chimney size, consider the following factors:
- Appliance Output: Higher BTU ratings generally require larger chimney diameters.
- Fuel Type: Wood-burning appliances typically need larger flues than gas or oil systems.
- Height: Taller chimneys may sometimes use slightly smaller diameters due to increased draft potential.
- Local Building Codes: Always verify compliance with local regulations, which may specify minimum sizes for certain applications.
For example, a standard wood stove with an output of 60,000 BTU would typically require a 6-inch or 7-inch chimney, depending on the manufacturer’s specifications and local codes. However, a larger fireplace insert producing 100,000+ BTU might necessitate an 8-inch or even 10-inch diameter for proper venting.
Masonry Chimney Size Chart
Masonry chimneys offer different sizing considerations based on their square or rectangular flue dimensions. The following chart outlines common masonry flue sizes and their typical applications:

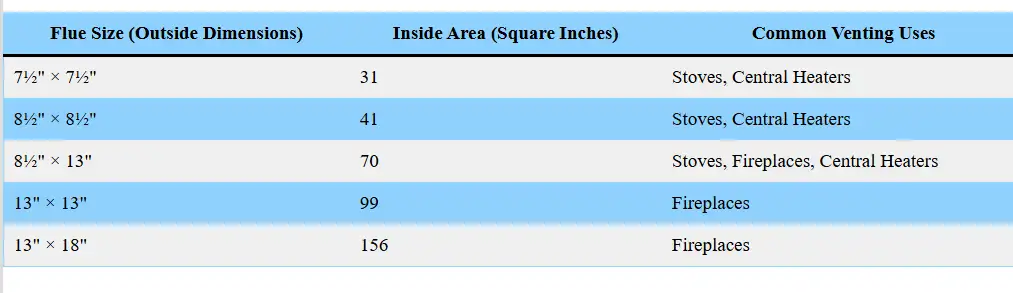

| Flue Size (Outside Dimensions) | Inside Area (Square Inches) | Common Venting Uses |
|---|---|---|
| 7½” × 7½” | 31 | Stoves, Central Heaters |
| 8½” × 8½” | 41 | Stoves, Central Heaters |
| 8½” × 13″ | 70 | Stoves, Fireplaces, Central Heaters |
| 13″ × 13″ | 99 | Fireplaces |
| 13″ × 18″ | 156 | Fireplaces |
Masonry chimneys have unique considerations compared to their metal counterparts:
- Heat Retention: Masonry materials absorb and radiate heat differently than metal, affecting draft characteristics.
- Thermal Mass: The substantial mass of masonry chimneys means they take longer to heat up but maintain temperature longer.
- Expansion and Contraction: Masonry materials expand and contract at different rates than metal liners, which must be accounted for in sizing.
- Rough Interior Surfaces: The rougher interior of masonry flues can create more friction, sometimes requiring larger dimensions than equivalent metal systems.
A traditional open fireplace would typically require a masonry flue of at least 13″ × 13″ (99 square inches) to vent properly, while a smaller wood stove might work efficiently with a 7½” × 7½” flue (31 square inches).
Factors That Influence Chimney Size Selection
Choosing the right chimney size involves more than just matching a chart. Several critical factors must be considered to ensure optimal performance and safety:
Appliance Specifications
Always consult your appliance’s manufacturer guidelines first. The manufacturer will specify the minimum and maximum chimney sizes compatible with their product. These specifications are based on extensive testing and are crucial for both safety and warranty compliance.
Heating Capacity (BTU Rating)
The British Thermal Unit (BTU) rating of your heating appliance directly impacts chimney sizing requirements. Higher BTU outputs produce more exhaust gases that need to be vented efficiently. As a general rule:
- Up to 40,000 BTU: 6-inch diameter (or equivalent)
- 40,000-70,000 BTU: 7-inch diameter (or equivalent)
- 70,000-100,000 BTU: 8-inch diameter (or equivalent)
- 100,000+ BTU: 10-12 inch diameter (or equivalent)
Chimney Height
The height of your chimney affects its draft potential. Taller chimneys create stronger draft due to the increased pressure differential between the bottom and top. In some cases, a taller chimney may allow for a slightly smaller diameter while maintaining adequate performance.
Local Climate
Colder climates create stronger temperature differentials between the inside and outside of the chimney, enhancing draft. In milder climates, you might need a slightly larger chimney to compensate for reduced natural draft.
House Construction and Location
The layout of your home, including the presence of multiple stories, cathedral ceilings, or tight building envelopes, can affect chimney performance. Homes with significant negative pressure (often due to powerful exhaust fans or tight construction) may require larger chimneys or additional air intake systems.
How to Calculate the Right Chimney Size
While manufacturer guidelines should always be your primary reference, understanding the basic principles of chimney sizing can help you make informed decisions:
The 10-to-1 Rule for Fireplaces
For traditional open fireplaces, a common guideline is the “10-to-1 rule”: the area of the fireplace opening should be no more than 10 times the area of the flue opening. For example, a fireplace with an opening of 40″ × 30″ (1,200 square inches) would require a flue with a minimum area of 120 square inches.
Equivalent Area Calculations
When comparing round metal flues to square or rectangular masonry flues, you need to calculate equivalent areas. The formula for the area of a circle is πr² (pi times radius squared), while for a rectangle it’s simply length × width.
For example, an 8-inch diameter metal flue has an area of approximately 50.3 square inches. To find an equivalent square masonry flue, you would need dimensions that multiply to approximately 50.3, such as 7″ × 7″ (49 square inches).
The Rule of Cross-Sectional Area
The cross-sectional area of the chimney should never be smaller than the cross-sectional area of the appliance’s flue collar. This ensures that the chimney can handle the maximum volume of exhaust that the appliance might produce.
Common Mistakes in Chimney Sizing
Even experienced installers can make errors when sizing chimneys. Here are some common pitfalls to avoid:
Oversizing
Many people assume that bigger is better when it comes to chimneys, but an oversized chimney can lead to:
- Poor draft, especially during startup or in mild weather
- Excessive cooling of exhaust gases, leading to creosote formation
- Increased heat loss up the chimney
- Higher installation costs with no performance benefit
Undersizing
An undersized chimney is even more dangerous, potentially causing:
- Inadequate venting of combustion products
- Excessive creosote buildup and increased fire risk
- Poor appliance performance and efficiency
- Smoke spillage into the living space
Ignoring Manufacturer Guidelines
Perhaps the most dangerous mistake is ignoring the appliance manufacturer’s specific chimney sizing requirements. These guidelines are based on extensive testing and are essential for safe operation.
Not Considering Future Upgrades
If you plan to upgrade your heating appliance in the future, it’s worth considering whether your chimney will accommodate the new system. Installing a slightly larger chimney now might save significant renovation costs later.
Building Codes and Safety Standards
Chimney sizing and installation are heavily regulated to ensure safety. Key standards and codes include:
NFPA 211: Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances
This comprehensive standard from the National Fire Protection Association provides requirements for the design, installation, maintenance, and inspection of all types of chimneys. It includes specific guidelines for chimney sizing based on appliance type and output.
International Residential Code (IRC)
The International Code Council maintains the IRC, which includes detailed requirements for chimney construction and sizing in residential buildings. Most local building codes are based on or reference these standards.
UL Standards
Underwriters Laboratories provides testing and certification for prefabricated chimney systems. Look for UL-listed chimney systems that have been tested to specific standards such as UL 103 (for factory-built chimneys) or UL 103HT (for high-temperature chimneys).
EPA Regulations
The Environmental Protection Agency regulates emissions from wood-burning appliances, which indirectly affects chimney sizing requirements. Certified appliances must be installed with properly sized chimneys to maintain their emission ratings.
Always check with your local building department before beginning any chimney installation or modification, as local requirements may exceed national standards.
Key Takeaways
- Proper chimney sizing is essential for safety, efficiency, and performance of your heating appliance.
- Chimneys come in two main categories: metal (prefabricated) and masonry, each with specific sizing considerations.
- The cross-sectional area of the chimney directly impacts its capacity to vent exhaust gases.
- Always follow the appliance manufacturer’s chimney sizing requirements first and foremost.
- Local building codes and safety standards provide minimum requirements that must be met or exceeded.
- When in doubt, consult with a certified chimney professional who can assess your specific needs and ensure compliance with all applicable regulations.
FAQs
What happens if my chimney is too small?
A chimney that’s too small can lead to poor draft, excessive creosote buildup, increased risk of chimney fires, and potentially dangerous backdraft of carbon monoxide into your home. It can also cause your appliance to perform poorly and inefficiently.
Can I have a chimney that’s too big?
Yes, an oversized chimney can be just as problematic as one that’s too small. An oversized chimney may not heat up sufficiently to create proper draft, especially during mild weather or startup. This can lead to condensation, creosote formation, and poor venting performance.
How do I know what size chimney I need for my wood stove?
The best source for chimney sizing information is your wood stove’s installation manual, which will specify the minimum and acceptable chimney sizes. As a general guideline, most residential wood stoves require a 6-inch or 8-inch diameter chimney, depending on their BTU output.
Can I connect multiple appliances to the same chimney?
In some cases, yes, but this requires careful consideration of sizing, compatibility, and compliance with building codes. Generally, you can connect multiple appliances to the same chimney only if the combined BTU output doesn’t exceed the chimney’s capacity and if specific code requirements are met. Always consult with a certified professional before connecting multiple appliances to a single chimney.
